RapidView IBAK MainLite Packages – Mobile System
Mobile Inspection Systems

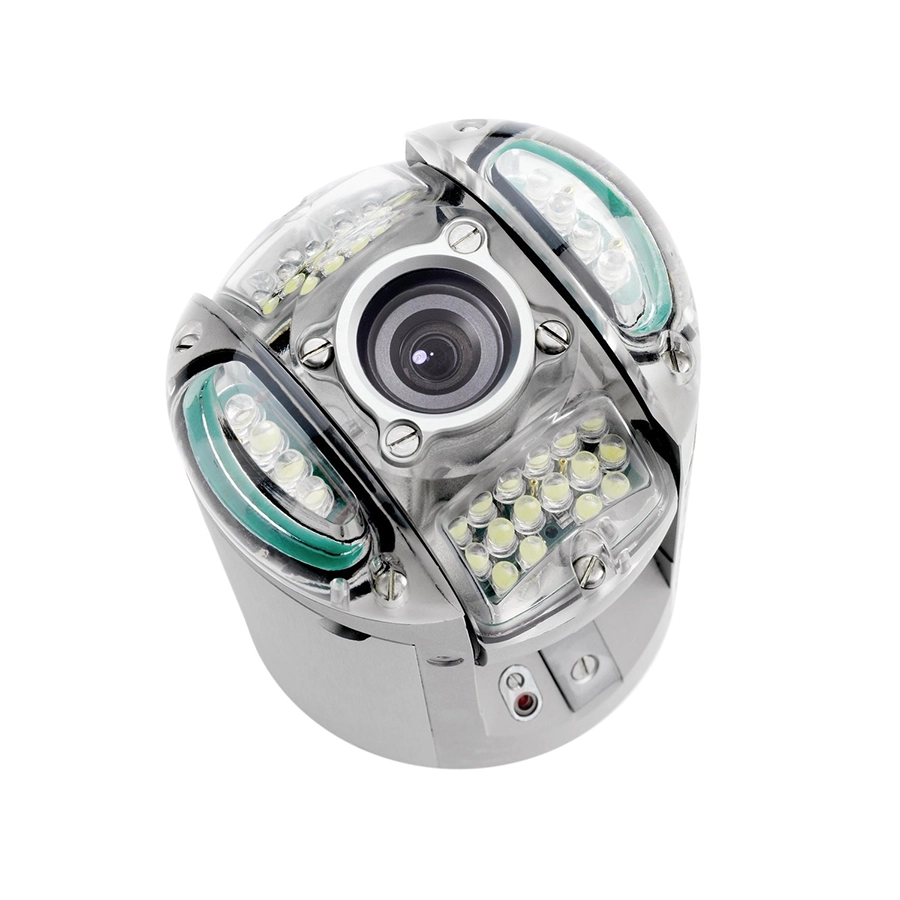

The MainLite® Systems are based around two very compact cable drums (KW 206 & KW 306) and the revolutionary BP series of multi-function controllers, with Windows 10 integrated! Mount the unit in a truck, or make it portable with the optional Portable Cart that is available for purchase. The MainLite® includes BP 100, T66 Crawler (continuous camera rotation) for 4″ and up, ORION Zoom camera, KW 206 drum with 656′ of cable and accessories.
Explore Our MainLite® Models:
MainLite® Mobile Systems

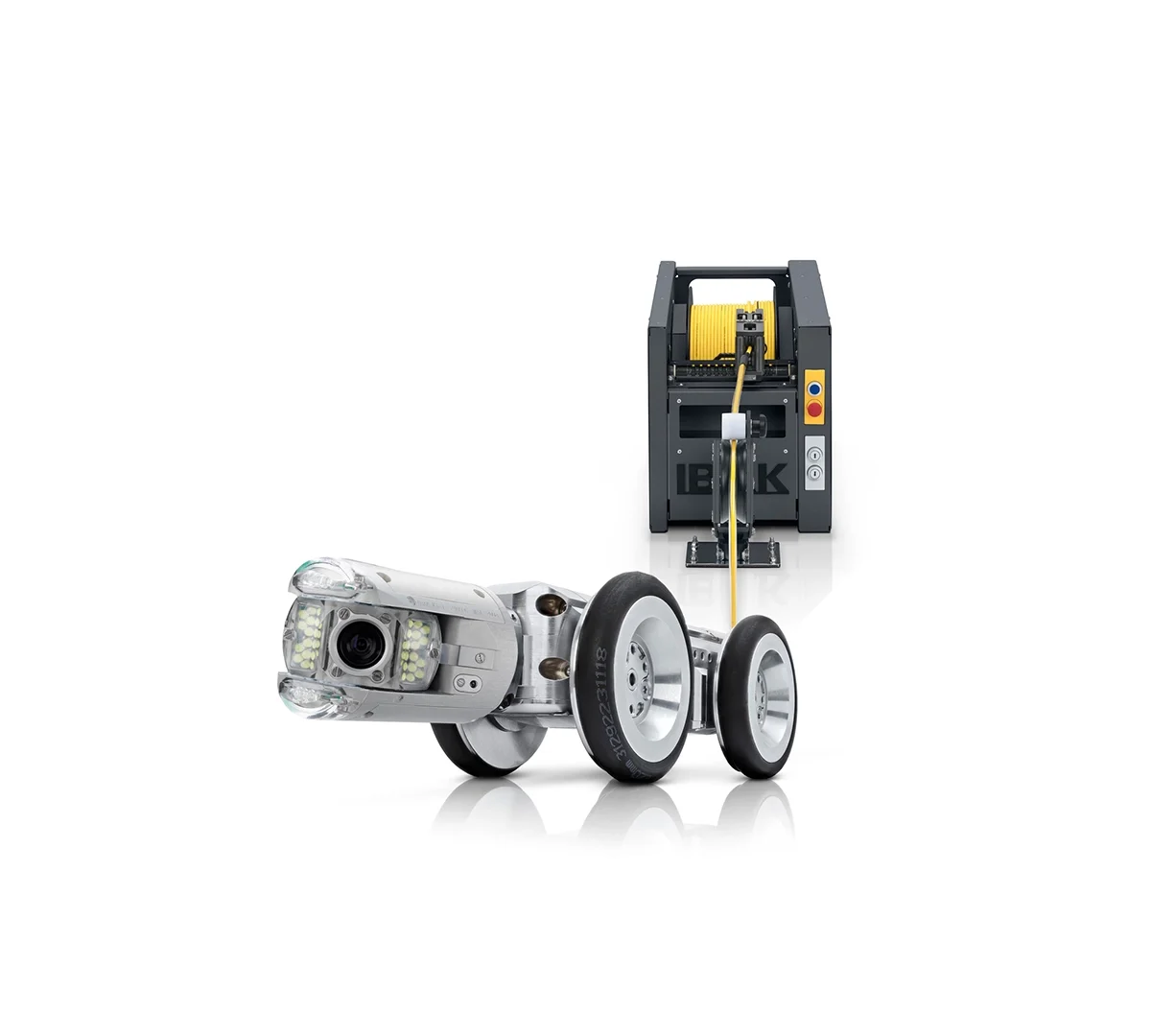

- Compact KW 206 drum with 656′ of cable.
- Includes T66 Crawler and ORION Zoom camera.
MainLite® PRO Mobile Systems
- T76 Crawler with powered elevator for 6″ pipes and up.
- ORPHEUS camera and KW 206 drum with 656′ of cable.
MainLite® XL Mobile Systems

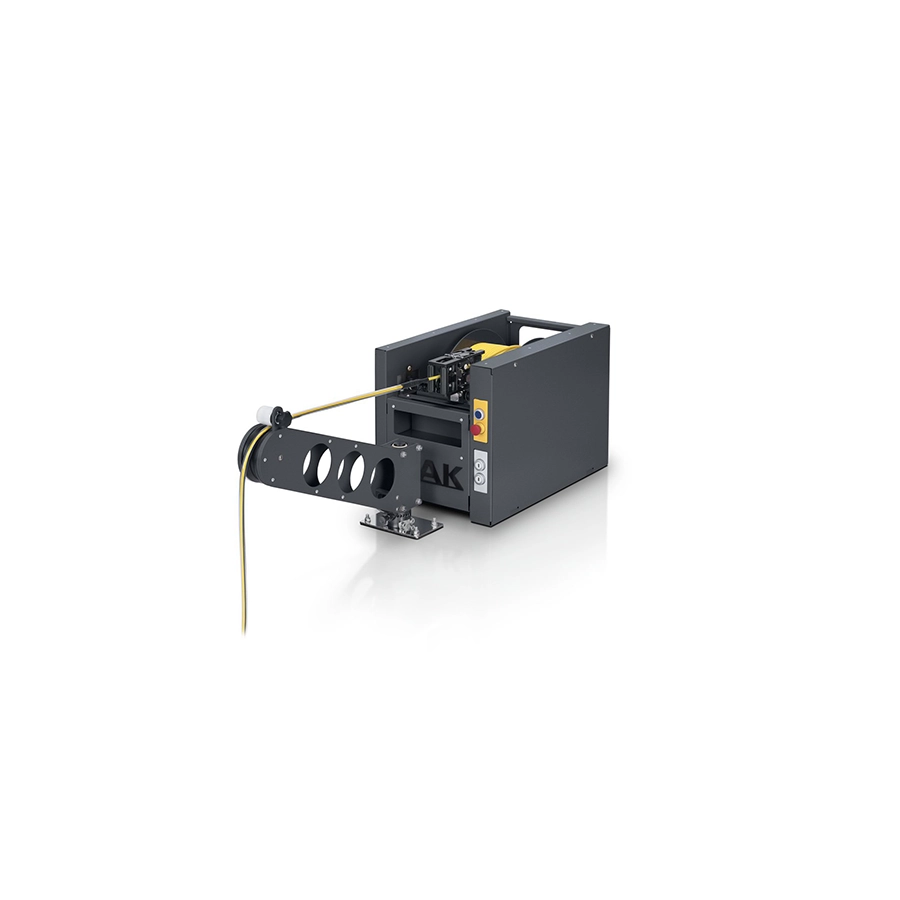

- Extended cable reach with KW 306 drum and 1000′ of cable.
- Includes T66 Crawler and ORION Zoom camera.

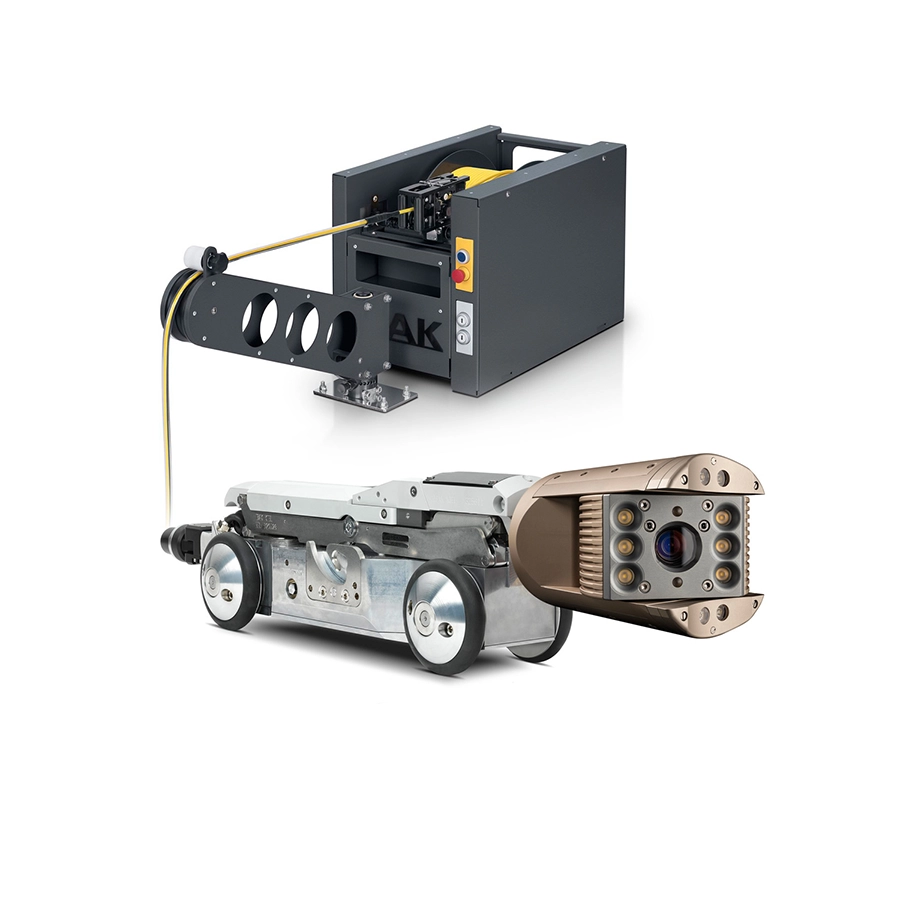

MainLite® PRO XL Mobile Systems
- Top-tier solution with T76 Crawler, powered elevator, and ORPHEUS camera.
- KW 306 drum with 1000′ of cable for maximum reach.
Why choose the MainLite® Series?
When precision meets innovation, the result is RapidView MainLite®. Built with advanced features and versatility in mind, these systems are designed to conquer even the toughest challenges. With MainLite®, every inch of infrastructure is accessible and observable.
- Compact and Portable Design: Choose between truck-mounted setups or the optional Portable Cart for ultimate mobility.
- Powerful Crawlers and Cameras: Continuous camera rotation with the T66 or T76 crawlers, perfect for pipe inspections starting at 4".

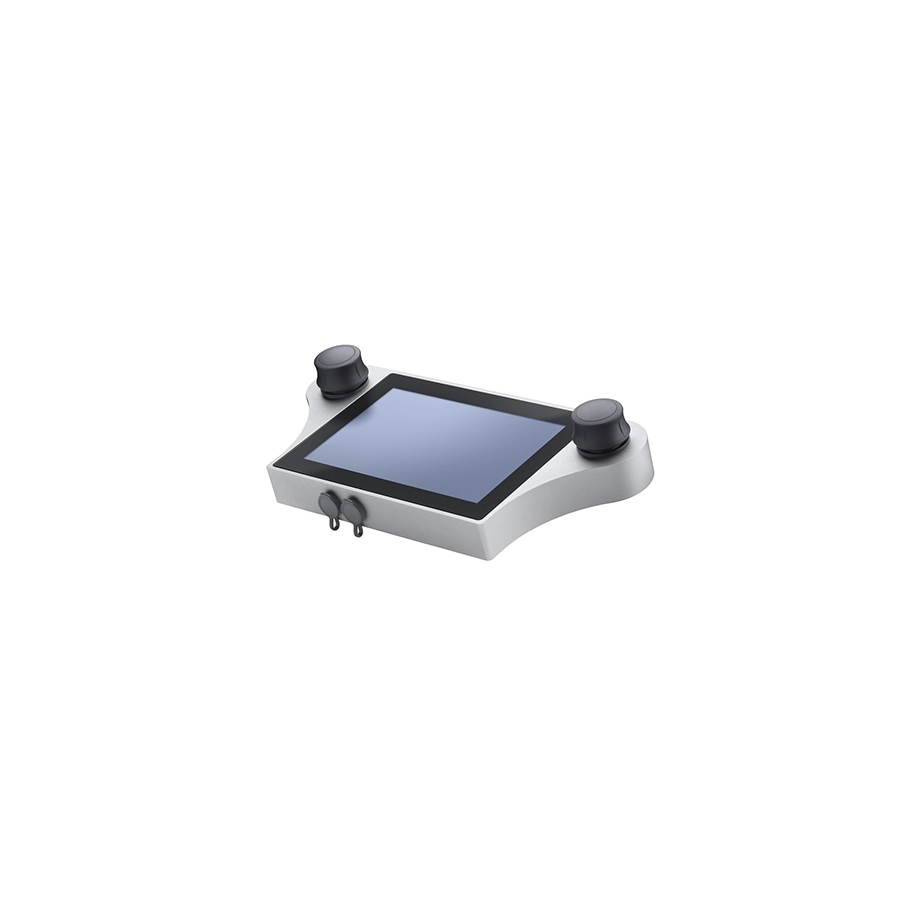

- Revolutionary Controllers: BP series controllers with Windows 10 integration for seamless operation and data management.
- Extended Cable Lengths: Options for 656' or 1000' of cable allow inspections deep into pipelines.
| MainLite Min. Diameter: | 4" – 6" in |
|---|---|
| MainLite Max. Diameter: | 48" – 120" in |
| Camera: | ORION Zoom or ORPHEUS |
| Control Unit: | BP 100 |
| Cable Reel: | KW 206 or KW 306 |
| Cable Length: | 656' ft – 1,000' ft |
| Service & Maintenance | Spare parts and servicing are available directly from SWS. |
