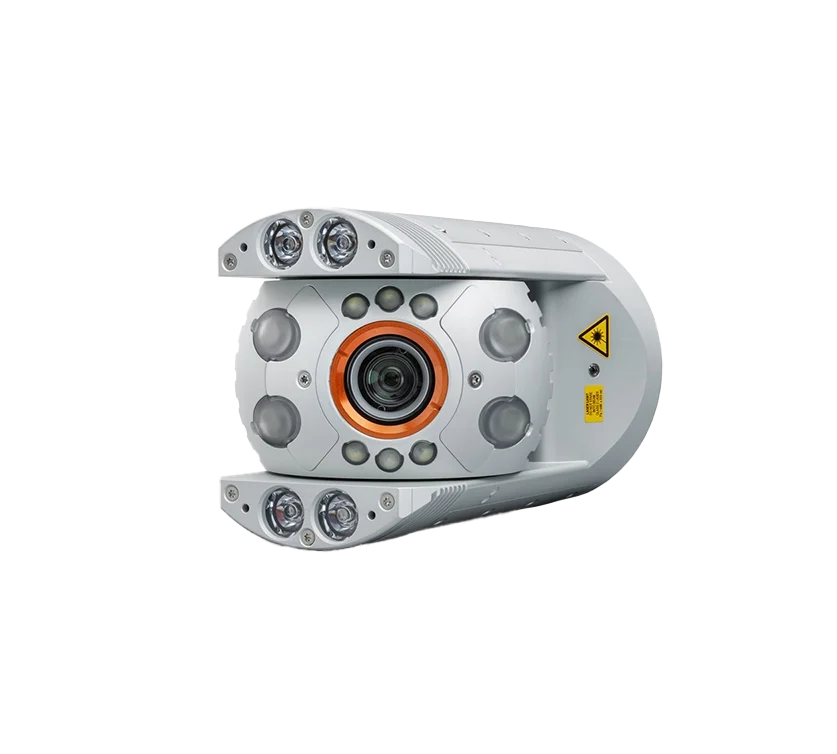

RapidView ARGUS 6 – Camera
The IBAK ARGUS 6 is a full digital HD, pan and tilt camera designed for operation in mainline sewers of 8” (200mm) and up. A unique feature to this camera is the patented ROTAX picture control enables the viewer to operate the camera like a human head and neck, keeping the picture correctly aligned, no matter where the camera is looking. Combining many of IBAK’s proven features makes the ARGUS® 6 suitable for a wide variety of applications.
ARGUS 6 Key Features:
- Full Digital HD Resolution (1920 x 1080p)
- 10x Optical Zoom / 16x Digital Zoom
- 8 white Power-LEDs, 6 white 5 mm LEDs for illuminating joint gaps
- Automatic Lighting Control System eliminates excess image noise
- ROTAX® Always Upright Image Correction
- Built-in laser for deformation & diameter measurements
- One-push Autofocus provides sharp image on command
- Panning Range +/- 120°
- Optional 3D GeoSense Pipeline & Lateral Mapping Sensor
Inspection Range:
Min. Diameter: 8″ (200mm)
Max. Diameter: 120″ (3050mm)
| FEATURES | AxialCam 2 | NANO | NANO-L | ORION SD | ORION-L SD | ORION 3 | ORION-L 3 | ORPHEUS | ORPHEUS HD | ARGUS 6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Sonde Transmitter | In Pushrod | Included | Included | Included | Included | Included | Included | Included | In Tractor | In Tractor |
| Pan & Tilt |
– |
|
|
|
|
|
|
|
|
|
| Zoom |
– |
– |
– |
|
|
|
|
|
|
|
| Auto-Iris |
– |
|
|
|
|
|
|
|
|
|
| Auto-Upright Image |
|
|
|
|
|
|
|
|
|
|
| Auto-Focus |
|
|
– |
– |
– |
– |
– |
– |
|
|
| Laser Measurement |
– |
|
|
|
– |
|
– |
|
|
|
| Pushrod Capability |
|
|
|
|
|
|
|
|
– |
– |
| Lateral Navigation |
– |
– |
|
– |
|
– |
|
|
– |
– |
| E-Flip |
– |
– |
– |
– |
– |
– |
– |
– |
|
|
| High Definition Video |
– |
– |
– |
– |
– |
|
|
– |
– |
|
| 3D GeoSense |
– |
|
|
|
|
|
|
|
|
|
Additional Information
Spec Sheet
