Perkins Rear Load Lifters
Efficient Waste Systems
The Perkins Rear Loaders are a highly efficient waste collection system designed for quick and effective trash handling. These trucks feature a rear-loading compactor that allows waste to be loaded into the truck from the back. The system is equipped with a variety of lifters, enabling it to accommodate different types of waste containers, which enhances its flexibility for both residential and commercial use. The rear loader design ensures fast, ergonomic operation, allowing waste to be collected and compacted with minimal manual effort, improving productivity and reducing operator strain.
Rear Load Lifter Types:
Grabber Lifter

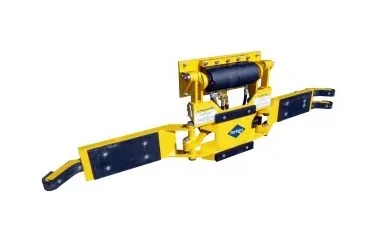

- D6099OA
- ISO 9001 manufacturer
- Compatible to wide assortment of carts and barrels, up to 96 gallon in capacity
- Mutliple powder-coat finish color options
Lifter

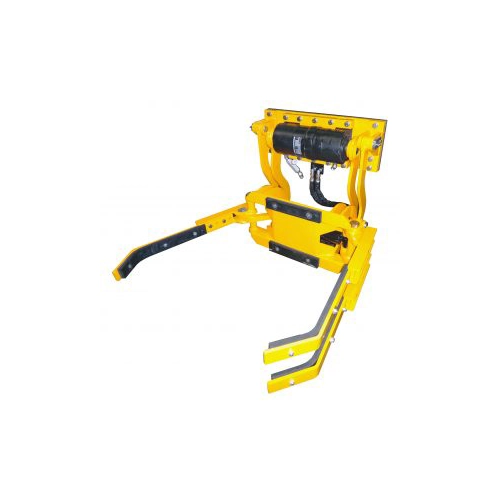

- D6120
- 6-8 Second cycle time at 3 GPM
- Less maintenance time
- Available customization for specific applications
- Pressures starting at 1,650 PSI for 400lb load
Tuckaway Lifter
- D6220B
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Simple operation and construction
- Popular design with 1000’s operational in the field.
- D6220BX
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Simple operation and construction
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- D6740XS
- Compatible with ANSI Type C carts
- 1,850 PSI required for 350 lbs
- 6-8 second cycle time @ 3.5 GPM
- D6745XS
- 1,850 PSI required for 350 lbs
- 6-8 second cycle time @ 3.5 GPM
- Self-lubricated bearings at pivot points (w/zerks)
- WD6220B
- TuckAway® Cart Lifter has cart-grabbing action that lifts cart on uneven terrain and varying heights.
- This unit can recess under the hopper, and when combined with a sill extension modification kit, your rearloader can operate both commercial and residential routes.
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
Half-Tuckaway Lifter
- D6795
- ISO 9001 manufacturer
- Compatible with ANSI Type B carts
- 1,550 PSI required for 400 lbs
- WD6795
- TuckAway® Lifter Performance
- ISO 9001 manufacturer
- Compatible with ANSI Type B carts
| Service & Maintenance | Spare parts and servicing are available directly from SWS. |
|---|
