RapidView IBAK Premium & Elite Mainline – Mounted System
Mounted Systems for Professional Video Inspections
Effortless pipeline inspections, reliable equipment, and enhanced safety—experience the difference with PREMIUM or Elite Mainline Mounted Systems.
Mainline mounted systems are an essential tool for conducting professional video inspections of pipelines. They consist of a camera attached to a cable, which is then inserted into the pipeline and moved along its path using a motorized winch. These systems are designed to provide clear, high-quality footage of the inside of the pipeline, allowing inspectors to identify potential issues and plan for necessary repairs or maintenance.
Why choose Mainline Mounted Systems?
- Safety-Driven Design: The integrated cable winch makes lowering the tractor into manholes safe and efficient, reducing the risk of injury or equipment damage.
- Exceptional Durability: Built to handle demanding conditions without compromising performance.
- Enhanced Productivity: Spend less time troubleshooting and more time getting the job done.

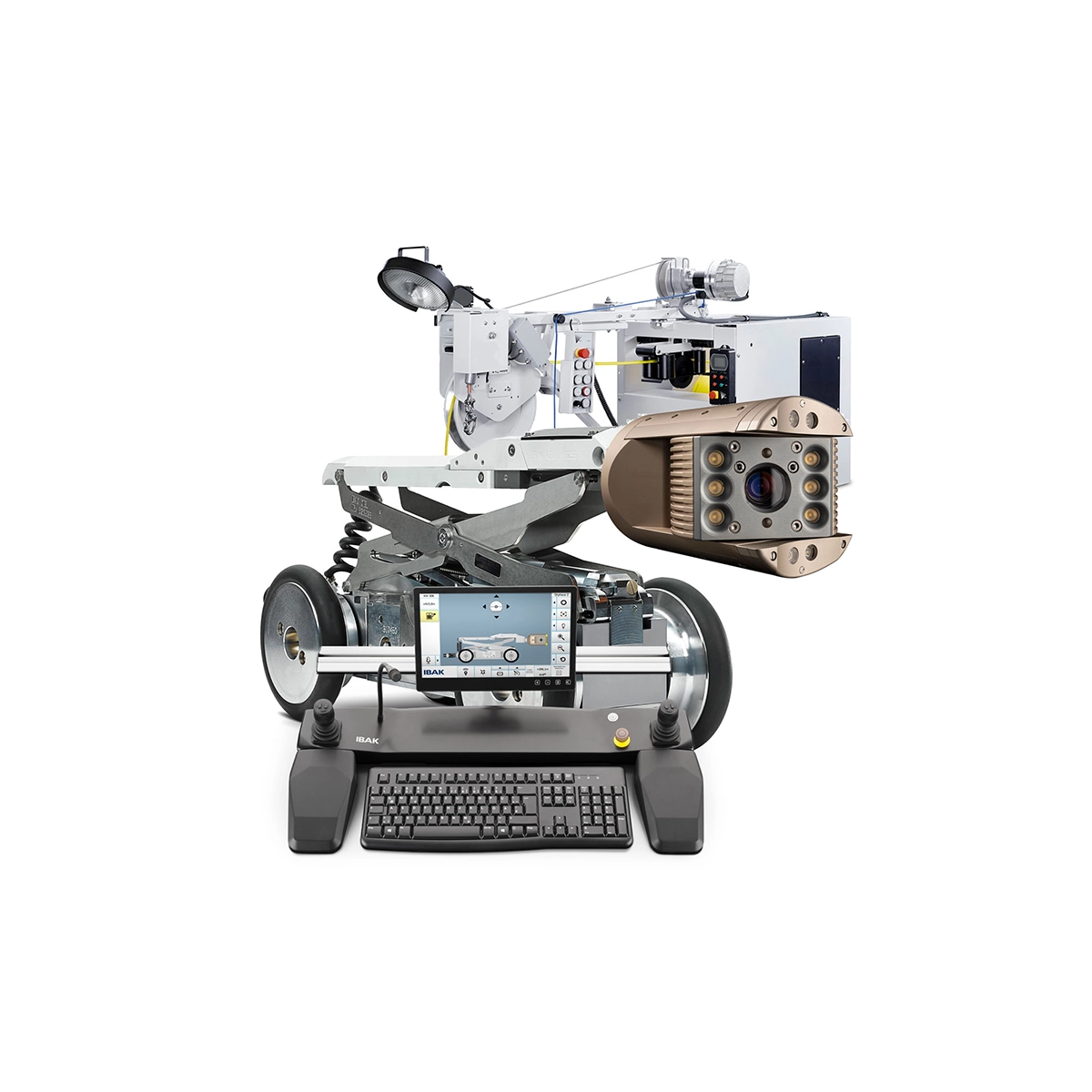

What’s included in the systems?
- ORPHEUS Camera: Delivers crystal-clear visuals to quickly identify potential issues.
- T76 Tractor: A robust and reliable option for pipeline inspections, capable of navigating tough environments (lift available for only for premium).

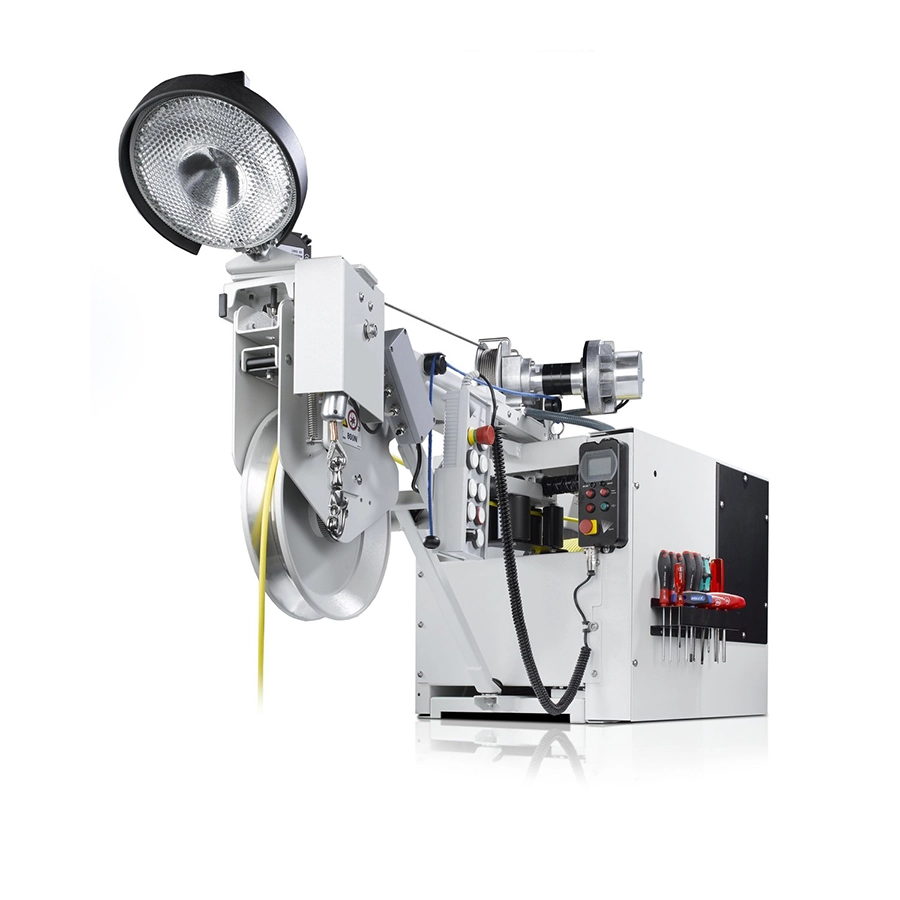

- KW 305 Cable Reel: Synchronized with 1000’ (300m) pull distance for seamless operations.
- BS 3.5 – 10 X Control Center: A powerful, user-friendly interface that simplifies every step of your inspection.
- Accessories: The Elite Mainline System comes with Large Pneumatic Tires.
| Mainline Min. Diameter: | 6" in |
|---|---|
| Mainline Max. Diameter: | 120" in |
| Cable Length: | 1,000' ft |
| Camera: | ORPHEUS |
| Cable Reel: | KW 305 (Synchronized) |
| Service & Maintenance | Spare parts and servicing are available directly from SWS. |
