Perkins Rear Load Lifters w/ Kick Bar
Efficient Waste Collection
The Perkins Rear Load with Kick Bar Lifters is a versatile waste collection system designed for efficient waste handling. It features a rear-loading compactor for easy loading of trash into the truck from the back. The kick bar lifters, which are typically foot-pedal operated, assist in lifting and tilting waste containers into the truck with minimal manual effort. Additionally, the system offers a variety of different lifters to accommodate different types of waste containers, enhancing flexibility for both commercial and residential use. This variety ensures that the system can be adapted to various needs, promoting faster, safer, and more efficient waste collection operations.
Rear Load Lifter Types:

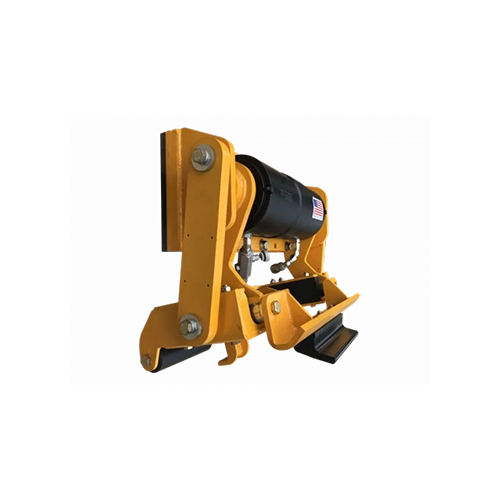

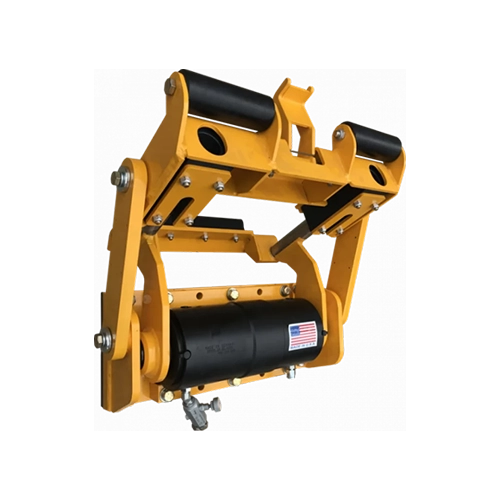

Tipper-Bar Cart Lifter
- D6220
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Simple operation and construction
Cart Lifter
- D6220WC
- TuckAway® Cart Lifter has cart-grabbing action that lifts cart on uneven terrain and varying heights.
- This unit can recess under the hopper, and when combined with a sill extension modification kit, your rearloader can operate both commercial and residential routes.
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- D6225
- Featuring TuckAway® lifter performance
- Deep cart dumping with powerful 27k helical actuator
- Unique “back-saving” action grabs carts on various terrains and heights
- D6245
- Lifts ANSI Type C (European Style) plastic carts.
- Powerful 27k rotary actuator for smooth and dependable lifting action
- Simple operation and construction
- D6250
- TuckAway® Cart Lifter has cart-grabbing action that lifts cart on uneven terrain and varying heights
- This unit can recess under the hopper, and when combined with a sill extension modification kit, your rearloader can operate both commercial and residential routes
- Lifters ANSI Type C (European Style) and ANSI TYPE B (US style) plastic carts
Tuckaway Lifter
- D6237A
- Spring loaded lower latch is easy on cart surfaces
- ISO 9001 manufacturer
- 1,550 PSI required for 400lb load
- 6-8 second cycle time @ 3 GPM
Tuckaway Cart Lifter
- D6400
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- The shape of the lifter adapts to your truck.
Rotary Cart Lifter
- D6405
- Fully-compatible with trucks equipped with a tipper-bar / kick bar.
- Powerful 27k rotary actuator for smooth and dependable lifting action.
- Self-resetting BreakAway feature reduces damage to the actuator in the event of a collision or bottom-out.
Tuckaway Tipper-Bar Lifter
- D6620
- Fully compatible to ANSI Type B carts
- New lower mounting height 38 1/2 – 42 inches
- 1,550 PSI required for 400lb load
| Service & Maintenance | Spare parts and servicing are available directly from SWS. |
|---|
