RapidView NANO – Camera

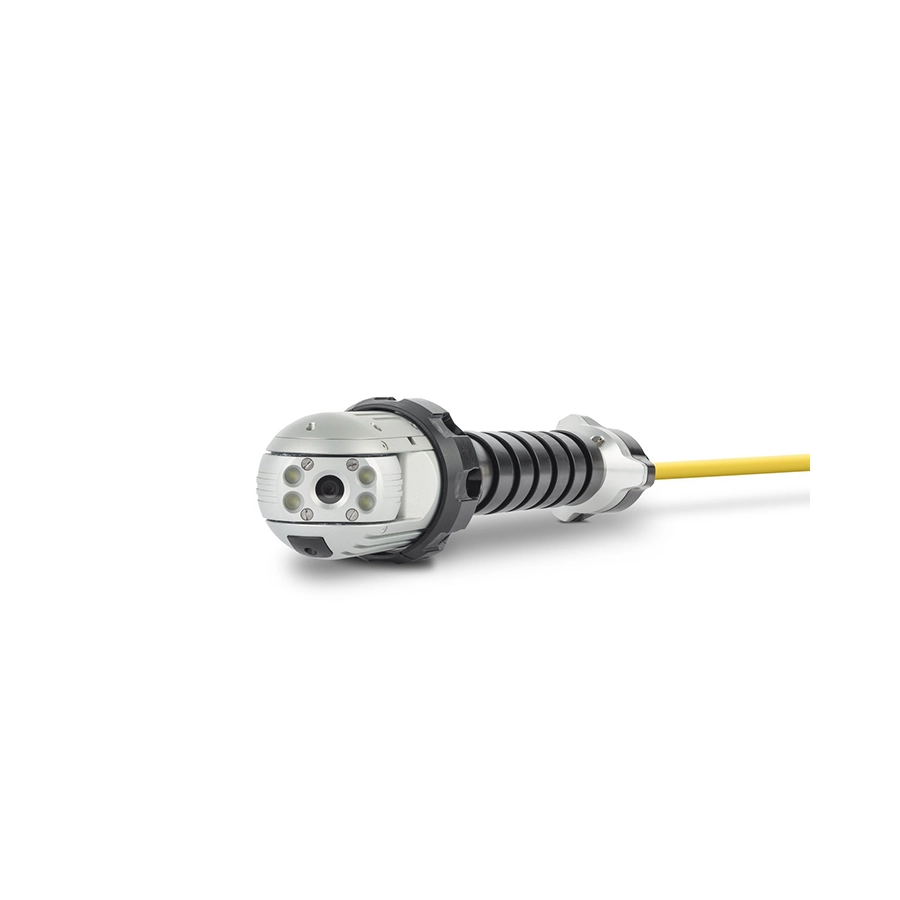

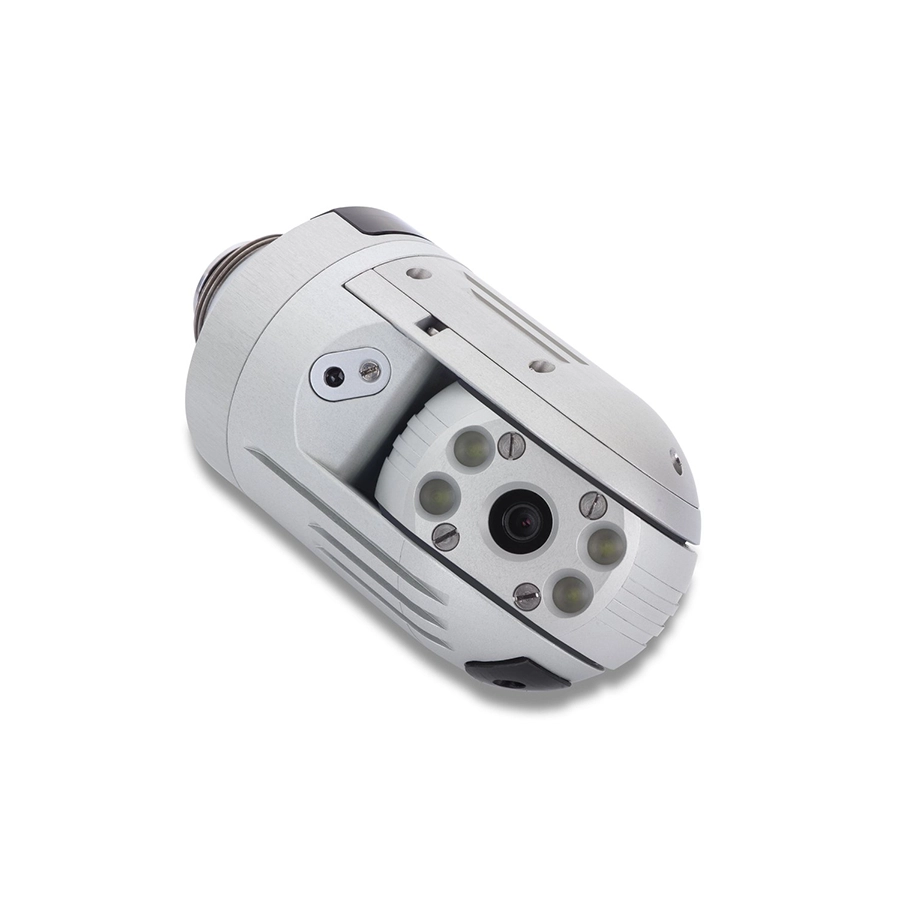

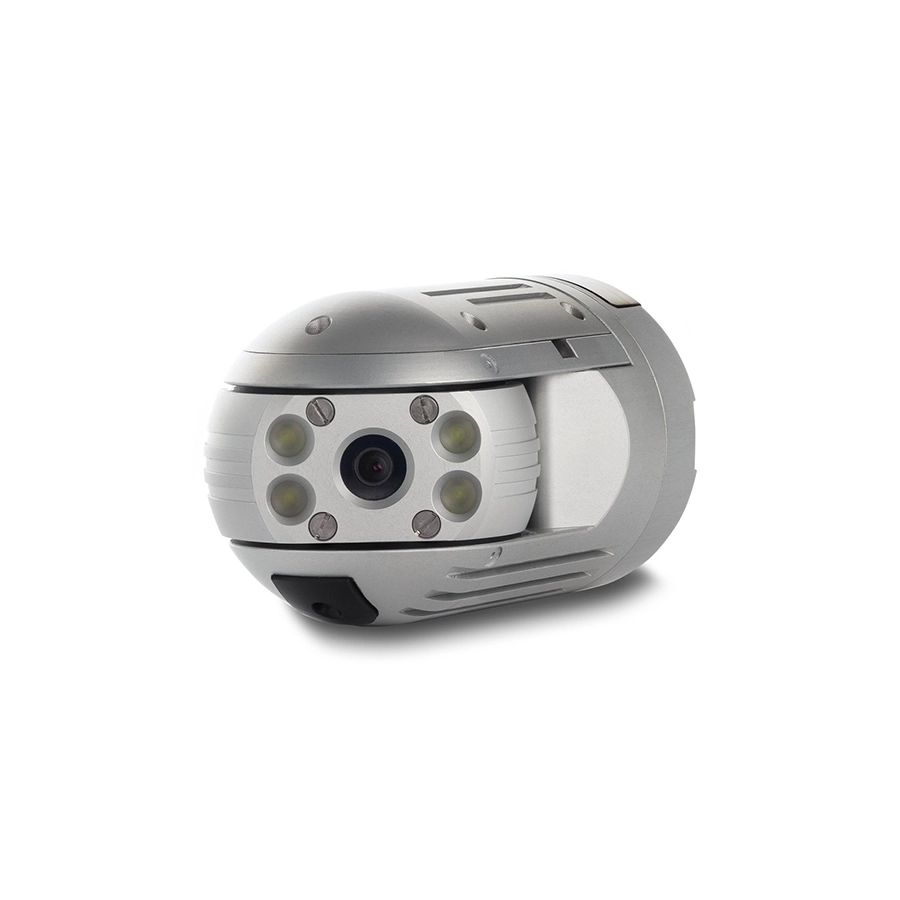

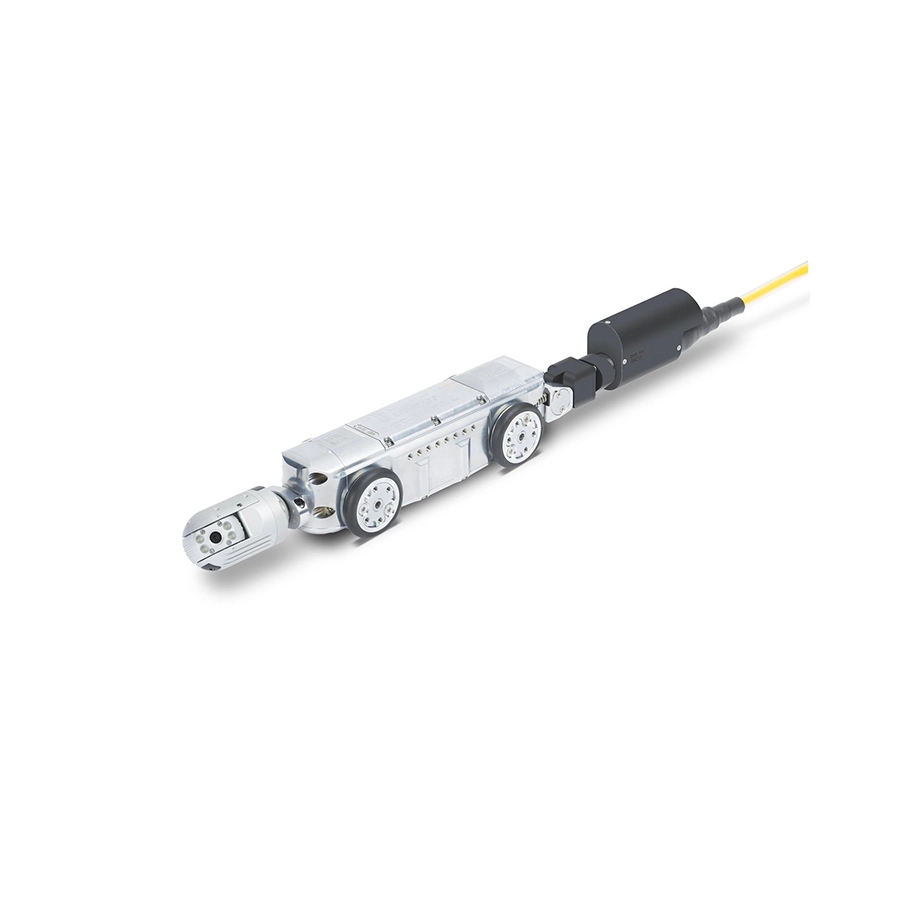

The NANO camera is a small diameter inspection camera that is compatible with a pushrod, tractor, or lateral launch system. It shares many of the same features as the ORION SD and is the smallest pan/tilt camera in the IBAK inspection camera line. While the NANO camera is capable of traveling in pipelines as small as 3” (75mm) in diameter, you will not be giving up power or flexibility with this camera.
Key Features:
- 16x Digital Zoom
- 4 white Power-LEDs
- Auto-Upright Image Control
- Built-in laser for deformation & diameter measurements
- Panning Range +/- 120° / Viewing Range +/- 150°
- Integrated Sonde Location Transmitter
- Optional 3D GeoSense Pipeline & Lateral Mapping Sensor
- Available for Lateral Navigation with additional Kiel Stick attachment
Inspection Range:
Min. Diameter: 3″ (75mm)
Max. Diameter: 24″ (610mm)
| FEATURES | AxialCam 2 | NANO | NANO-L | ORION SD | ORION-L SD | ORION 3 | ORION-L 3 | ORPHEUS | ORPHEUS HD | ARGUS 6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Sonde Transmitter | In Pushrod | Included | Included | Included | Included | Included | Included | Included | In Tractor | In Tractor |
| Pan & Tilt | – |  |
|
|
|
|
|
|
|
|
| Zoom | – | – | – | |
|
|
|
|
|
|
| Auto-Iris | – | |
|
|
|
|
|
|
|
|
| Auto-Upright Image | |
|
|
|
|
|
|
|
|
|
| Auto-Focus | |
|
– | – | – | – | – | – | |
|
| Laser Measurement | – | |
|
|
– | |
– | |
|
|
| Pushrod Capability | |
|
|
|
|
|
|
|
– | – |
| Lateral Navigation | – | – | |
– | |
– | |
|
– | – |
| E-Flip | – | – | – | – | – | – | – | – | |
|
| High Definition Video | – | – | – | – | – | |
|
– | – | |
| 3D GeoSense | – | |
|
|
|
|
|
|
|
|
